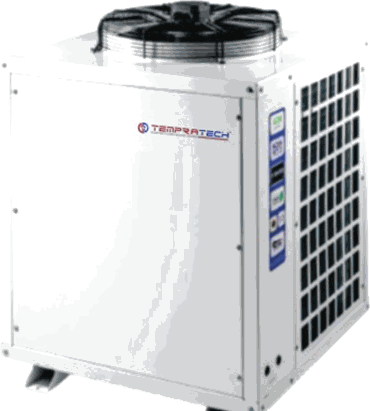

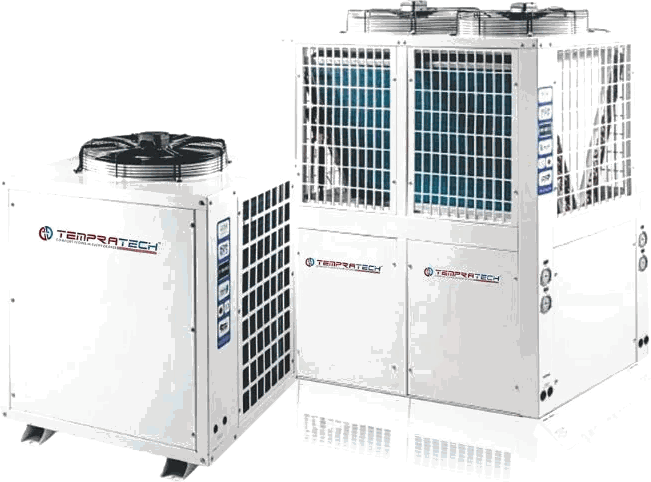

Tempratech TT-CM commercial DHW heat-pump units

AHRI 210/240 · ISO 9001 · CE

The unit controller showing a 60 °C setpoint

Two TT-CM units installed on a terrace with insulated pipework

Commercial · TT-CM Series

Large-scale hot water. Small running cost.

From a boutique hotel to a multi-specialty hospital, Tempratech commercial heat pumps deliver dependable hot water at a fraction of the cost of electric or gas. Available Hot & Cold (8 °C to 60 °C), with capacity and specifications your MEP consultant can design around.

14 kWheating capacity

4.2rated COP

55 / 60 °Crated / max water

Select a model

Produces 300 L/h of hot water at ΔT 40 °C. Multiple units combine for larger demand.

Request sizing Talk to us about a project

Built-in voltage protection
Runs to 0 °C without shutdown
Installation, 24×7 support, AMC

Key features

Purpose-built for buildings that can't run out.

Copeland / Panasonic scroll

Brand-name scroll compressors — one on 14–25 kW, two on 37–100 kW, four on 140–180 kW. Parts and service available across India.

Tube-in-shell condenser

Robust water-side heat exchange with a blue-finned evaporator coil and electronic expansion valve.

Built-in voltage protection

Standard across the Tempratech range — protection against the power fluctuations Indian sites actually see.

Hot & Cold, 8 °C to 60 °C

Heating and cooling from one system where the building needs both — chilled water and DHW off the same plant.

COP around 4.2

Roughly 350–450% operating efficiency against 95% for electric — the reason running cost falls so far.

Spec sheets for tenders

Sizing data and specifications available for consultants and tender documents, with AHRI 210/240, ISO 9001, CE, Intertek and Keymark certification.

Technical data

Specifications, model by model.

Full datasheet (PDF) →

Standard range · 14–50 kW · 380–415 V / 3-ph · R410A / R407C

Parameter	TT-CM-14	TT-CM-19	TT-CM-25	TT-CM-37	TT-CM-50
Heating capacity (kW)	14	19	25	37	50
COP	4.2	4.2	4.15	4.2	4.2
Hot water ΔT30 / ΔT40 (L/h)	400 / 300	550 / 410	720 / 540	1,060 / 800	1,440 / 1,080
Input power (kW)	3.8	4.4	6.0	8.8	12.1
Rated current (A)	6.4	8.4	11.4	16.7	23.1
Compressors	1	1	1	2	2
Water flow (m³/h)	2.5	3.2	4.3	6.5	8.7
Noise dB(A)	≤65	≤65	≤65	≤65	≤67
Dimensions L×W×H (mm)	800×800×1110	800×800×1110	800×800×1110	1450×890×1110	1600×990×1150
Net weight (kg)	140	180	200	310	365

Large split range · 70–180 kW · 380–415 V / 3-ph

Parameter	TT-CM-70	TT-CM-90	TT-CM-100	TT-CM-140	TT-CM-180
Heating capacity (kW)	70	90	100	140	180
COP	4.1	4.15	4.2	4.1	4.15
Hot water ΔT30 / ΔT40 (L/h)	2,010 / 1,510	2,580 / 1,940	2,870 / 2,150	4,015 / 3,010	5,160 / 3,870
Input power (kW)	17.1	21.7	23.8	34.1	43.4
Rated current (A)	32.4	41.2	45	64.9	82.4
Compressors	2	2	2	4	4
Water flow (m³/h)	12	15.5	17.3	24	30.9
Noise dB(A)	≤70	≤72	≤72	≤75	≤78
Water pipe size	R2	R2	R2	R2½	R3
Dimensions L×W×H (mm)	1850×950×1635	2250×1090×1635	2250×1090×1635	1900×1850×1635	2250×2180×1150
Net weight (kg)	610	740	820	1150	1300

Figures transcribed from the Tempratech heat-pump brochure (rated water 55 °C, max 60 °C; R410A / R407C; electronic expansion valve; blue-finned evaporator). Confirm against the current datasheet before tender use.

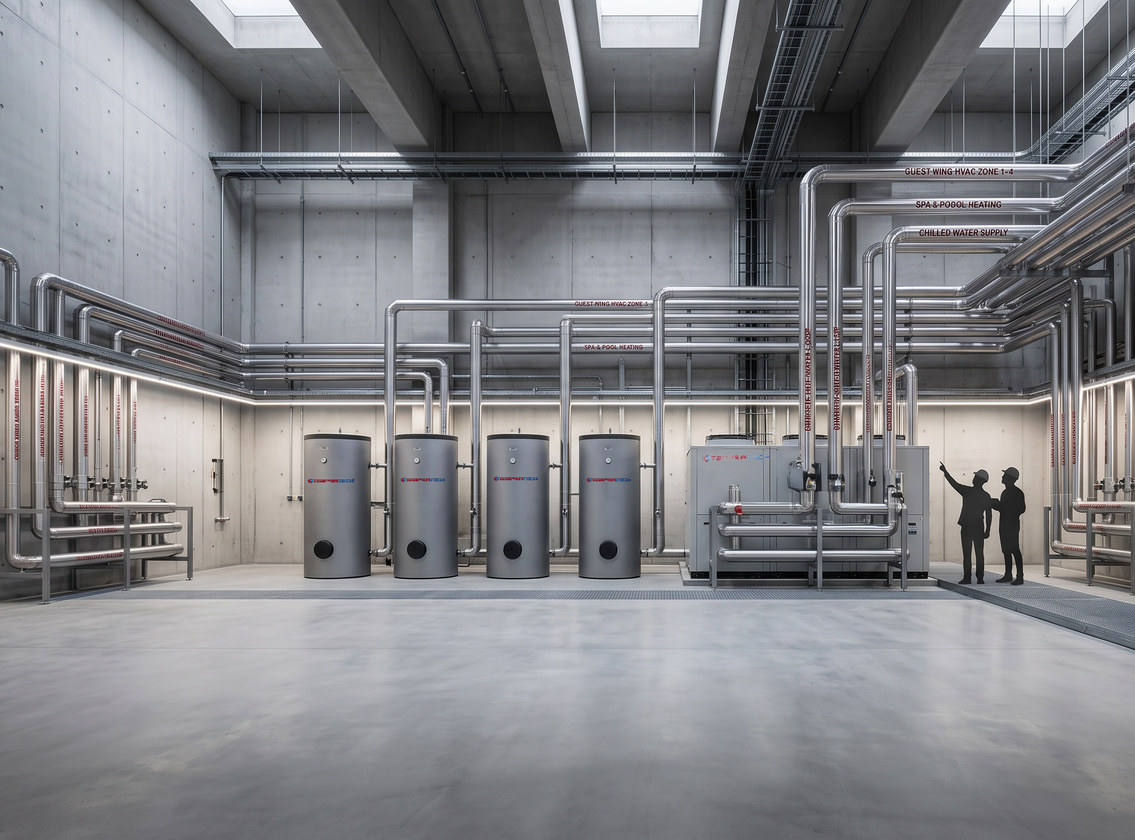

A plant room with a bank of TT-CM units, storage cylinders and insulated pipework

Installation

What the site needs to allow for.

Installation: Outdoor — terrace or ground level
Power supply: 380–415 V / 3-ph
Water temperature: 55 °C rated · 60 °C max
Unit weight: 140–1,300 kg by model
Service clearances: Per installation manual

Units need a level plinth able to carry the model weight, free air across the evaporator, and space to open the service panel. Pair with Glass Blu Magic storage so the unit runs in long, efficient cycles rather than short-cycling on every draw-off — our engineers size the tank with the unit at survey.

See storage tanks →

Running cost

A quarter of the cost of an electric system.

Because a heat pump moves heat instead of generating it, operating efficiency runs 350–450% against 95% for electric and about 90% for LPG or PNG.

Operating cost per 100 L of hot water*

₹44

Electric

₹32

LPG

₹23

PNG

₹10

Tempratech

*Tempratech published comparison. Varies with utility rates, tariff and usage.

Efficiency

350–450%

Against 95% for an electric system. Savings of up to 85% versus electric heating are subject to your tariff and usage — we estimate yours from metered load at survey.

Estimate my savings
